Outline

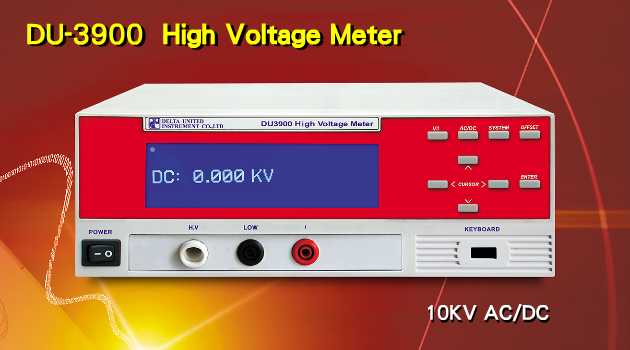

The DU-3900 is a digital voltmeter that can measure high voltages up to a 10kVac and 14kVdc at high
　accuracy. Its high input impedance (1000MΩ) makes it suitable for measurement of high impedance
　voltage circuits. Since it has a high accuracy despite its small size and light weight, it can also be
　easily used as a portable calibrator.
Standard Fittings
Measures high voltages up to 10kVac and 14kVdc.
Large 240*64 Graphic display, 4 1/2 digits LCD display.
High measurement accuracy and high input impedance.
Light weight and compact design.
For output voltage calibration of dielectric strength testers and insulation testers.
RS-232 Interface function.

Specifications
Model DU-3900//DU-3901
Voltage DC voltage

Measurement range: 0.100 to 10.000kV
Accuracy : ±(0.5% rdg + 0.03% range)
Maxmum allowable input voltage: DC: ±14kV
Max. input impedance: 200MΩ. ± (1.0%)
Test speed: 3 meas. / sec.

AC voltage

Measurement range: 0.500 to 10.000kV
Accuracy: ±(1% rdg + 0.05% range)
Maximum allowable input voltage:
　　　　　11kVrms (sine wave 50 to 60Hz)
Max. input impedance: 200MΩ. ± (1.0%)
Test speed: 3 meas. / sec.
Current DC current Measurement range: 200.00uA/2.0000mA/20.000mA/200.00mA
　　　　　　　 4 ranges
Accuracy : ±(0.5% rdg + 0.03% range)
Maximum allowable input voltage: 1000V
Max. input current: 200 mA
Test speed: 3 meas. / sec.
AC current

Measurement range: 2.0000mA/20.000mA/200.00mA 3 ranges
Accuracy: ±(1% rdg + 0.05% range)
Maximum allowable input voltage: 1000V
Max. input current: 200 mA
Test speed: 3 meas. / sec.

General specification
Trigger Mode Internall, External
Display 240 * 64 Graphic display, 4 1/2 digitals
Instant clock Real Time Clock.
Comparator V/I standard value & Hi-Lo % limits. OK/NG Judgment & indication with alarm.
Calibration ISoftware and adjustments are made through the front panel. Automatic
Calibration Alert function to signal operator when re-calibration is due.
DU-3901 only Memory: Up to 100 sets of memory.
Interface: RS-232 & Handler Two interface features combined together.
Trigger Mode Internall, External
Power requirement 115/230VAC ±10%, 50/60Hz
Power consumption Approx. 25 VA
Dimensions 270W × 105H × 310D mm
Weight Approx. 4.0kg
Accessories High voltage test lead(Red/Black) 1 set

Order Information
DU-3900 High Voltage Meter
Standard Fittings
Fx39-0101 HV test lead wires
Fx39-0102 HV test lead wires
Fx39-0101
Fx39-0102
