| Feature |
 Wide Measuring Range & High accuracy 0.1%
Zeroing Offset Function
Provided HI/LOW limit and BIN Sorting comparator function, to meet your needed.
100 sets of memory, can be saved test parameter and comparator setting, easy to use.
Cover up free, system firmware upgrade can be update via RS-232, easy to maintenance
Easy Test Condition Setting with Auto Parameter Selection & Auto Ranging Function
High speed FADC, max. test speed up to 10 meas./sec, faster your automation equipment
240*64 Graphic LCD display, can be read the reading clearly and easier.
User friendly programmable interface, easy to use
Provided RS-232C and Handler combinatorial interface option, to meet your needed |
| Specification |
| Model |
DU-6210 |
| Parameter |
C.D.ESR |
| Test Frequency |
100Hz、120Hz、1KHz |
| Test Voltage |
0.1V、0.25V、0.5V、1.00V，(± 5% + 5mV) |
Measurement
Accuracy |
Basic accuracy ± 0.1 % |
Measurement
Range |
L: 0.1 uH ~ 1999.9H Q: 0.01~ 1999.9
C: 0.1 pF ~ 199.99mF D: 0.0001~ 19.999
R: 0.1 mΩ ~ 19.999 MΩ θ: -180°~ +180
Z: 0.1 mΩ ~ 199.99 MΩ ESR: 0.1 mΩ ~ 19.999 MΩ |
| Test Speed |
SLOW:400ms MED: 100ms FAST: 10ms |
| Trigger Mode |
Internal、External |
| Comparator |
Auto parameter, Auto ranging, Zeroing calibration |
| Comparator |
HI/LO Limit
R standard value & Hi-Lo % limits. OK/NG Judgment & indication with alarm.
BIN Sorting
9 Bins for sorting. R standard value & Hi-Lo % limits. OK/NG Judgment & indication with alarm.
|
| Display |
LCD 240 x 64 Graphic display, 4 1/2 digits |
| Memory |
Up to 100 sets of memory (Option) |
| Interface |
RS-232 & Handler Two interface features combined together |
| Backup status |
Measurement status : Measure range, Parameter, Frequency, Circuit (Parallel / Series)
Voltage, Comparator setting |
| Calibration |
Software and adjustments are made through the front panel. Automatic Calibration
Alert function to signal operator when re-calibration is due. |
| Power |
115V/230 V ± 10%, 50/60 Hz |
| Dimensions |
270(W) x 110(H) x 310(D) mm |
| Security |
Programmable password lockout capability to avoid unauthorized access to test set-up program |
| Equipment status |
Model、S/N Number、Software Version、Calibration Mode、Calibration Date
Calibration Result、Check Date、Check Result Etc. |
Order Information |

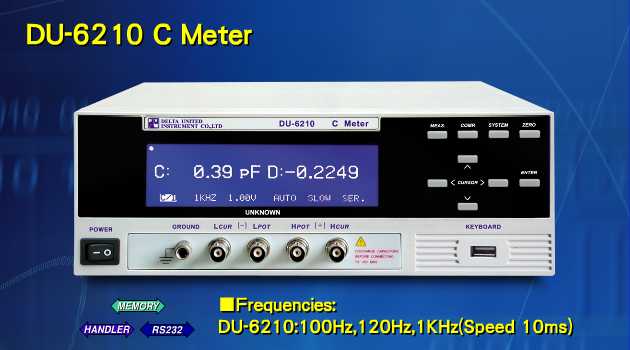

DU-6210 |
High Speed C Meter |
Standard Fittings |
|
|
Optional Accessories |
| Fx60-0201 |
Double-Sided Test Box |
|
|
Fx60-0101 |
Fx60-0201 |
|
|
|
|
|
 |
|
|
|
|
| |
|
|
|
|
|
|
| |
